| 产品 |
型号标题 |
功率 |
输入
电压 |
输出
电压 |
输出
路数 |
效率
% |
PFC |
尺寸 |
安规认证 |
技术
手册 |
样品
申请 |
 |

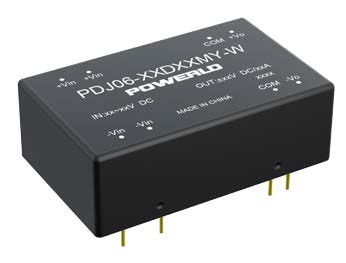

PDJ06-XXDXXMY-W |
6W |
,9~36VDC,18~75VDC, |
±5V ,±12V ,±15V |
2 |
81% |
|
31.75*20.32*10.16mm |
|
 |
 |
 |

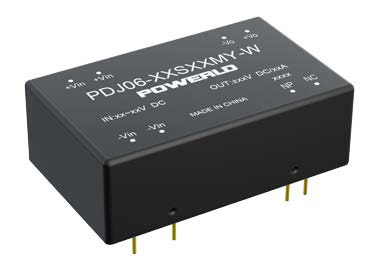

PDJ06-XXSXXMY-W |
6W |
,9~36VDC,18~75VDC, |
3.3V ,5V ,12V ,15V |
1 |
83% |
|
31.75*20.32*10.16mm |
|
|
|
 |

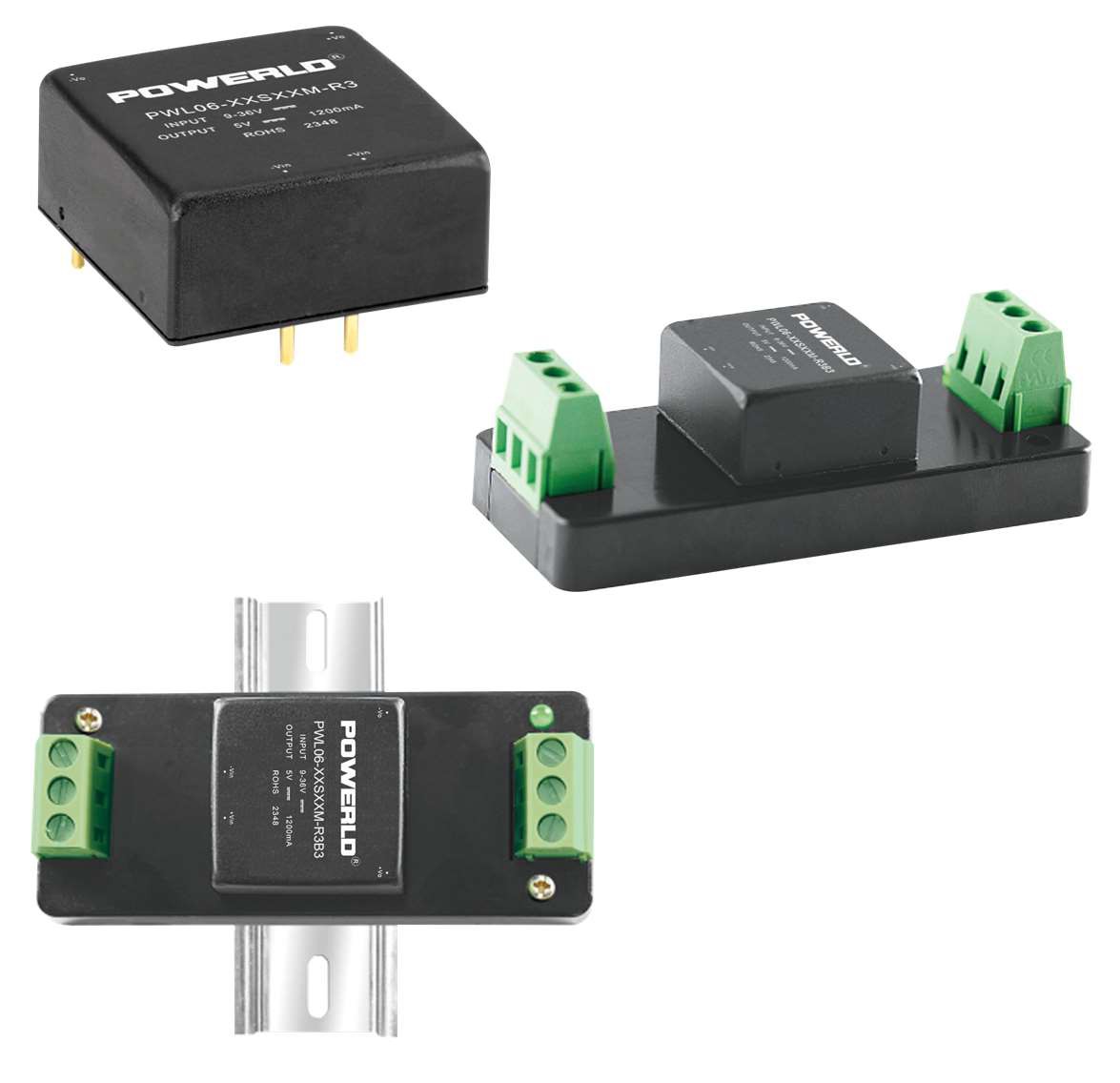

PWL06-XXSXXM-R3 |
6W |
,9~36VDC,18~75VDC, |
3.3V ,5V ,9V ,12V ,15V ,24V |
1 |
89% |
|
25.40*25.40*11.70mm |
|
|
|
 |
PS01-XXDXX |
1W |
,4.5~9VDC,9~18VDC,18~36VDC,36~75VDC, |
±5V ,±12V ,±24V ,±3.3V |
2 |
84% |
|
22.00*9.50*12.00mm |
|
|
|
 |

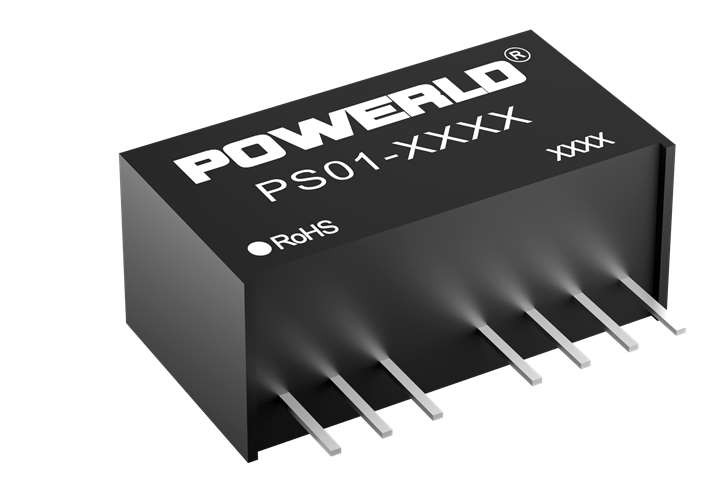

PS01-XXXX |
1W |
,4.5~9VDC,9~18VDC,18~36VDC,36~75VDC, |
3.3V ,5V ,12V ,24V |
1 |
84% |
|
22.00*9.50*12.00mm |
|
|
|
 |

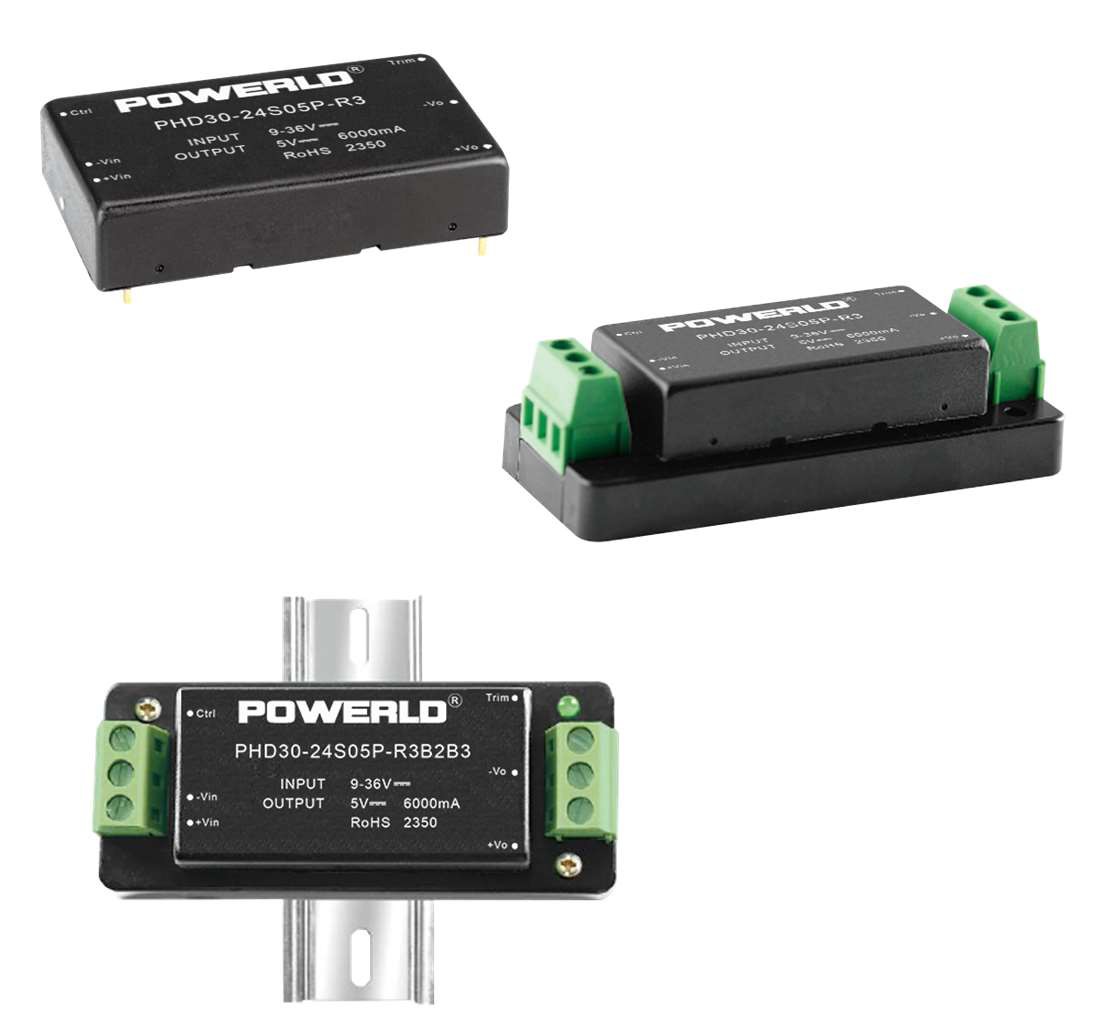

PHD30-XXSXXP-R3 |
30W |
,9~36VDC,18~75VDC, |
3.3V ,5V ,12V ,15V ,24V ,28V |
1 |
91% |
|
50.80*25.40*12.80mm |
|
|
|
 |

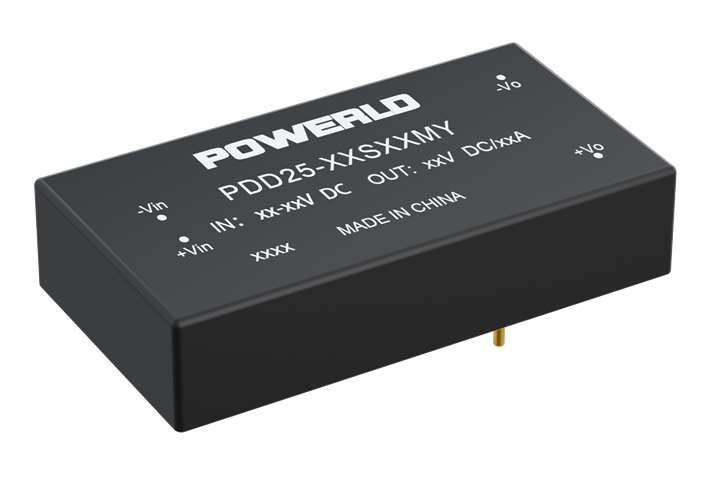

PDD25-XXSXXMY |
25W |
,9~36VDC,18~75VDC, |
3.3V ,5V ,12V ,15V |
1 |
87% |
|
50.80*25.40*10.16mm |
|
|
|
 |

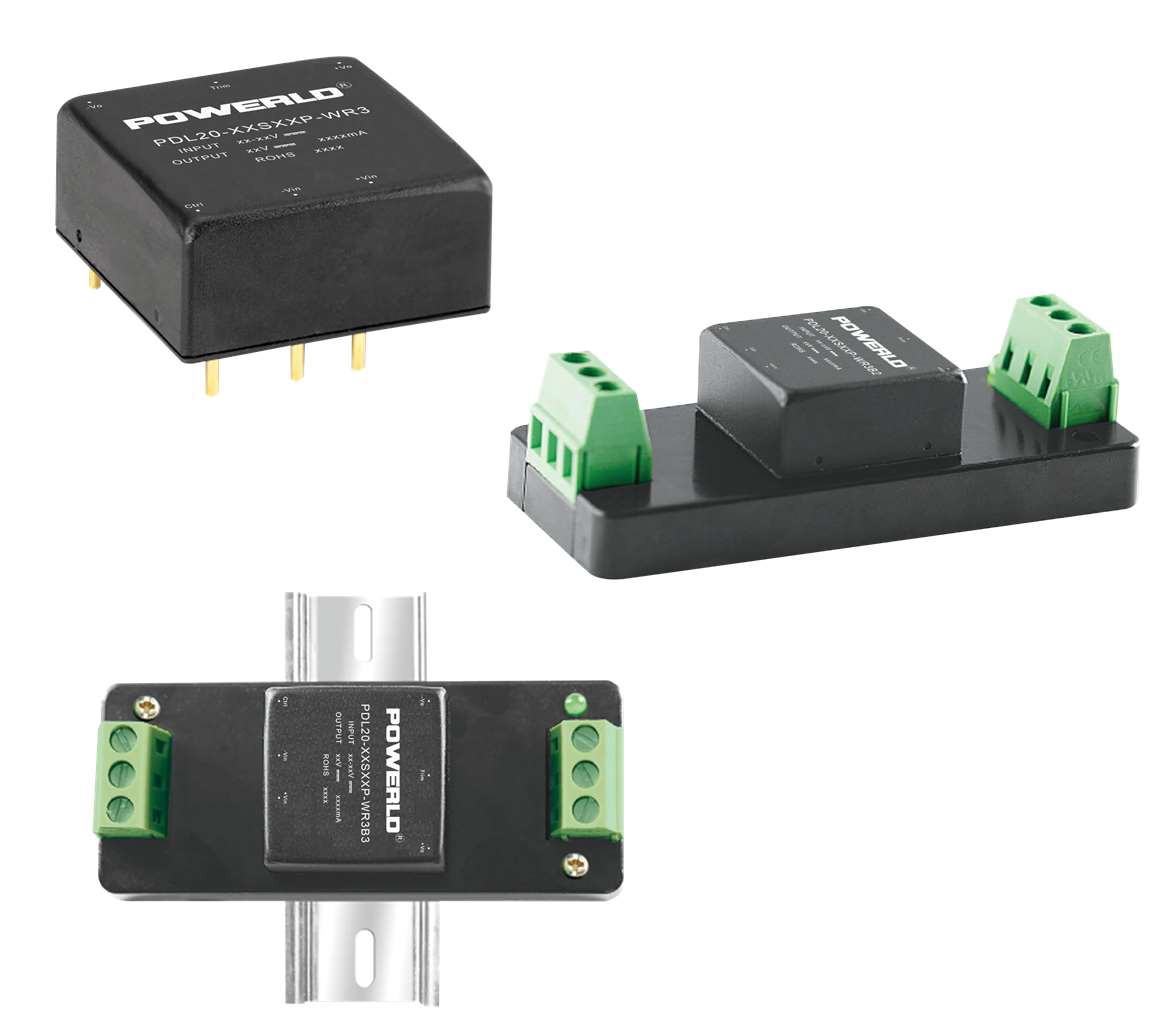

PDL20-XXSXXP-WR3 |
20W |
,9~36VDC,18~75VDC, |
3.3V ,5V ,9V ,12V ,15V ,24V |
1 |
92% |
|
25.40*25.40*11.70mm |
|
|
|
 |

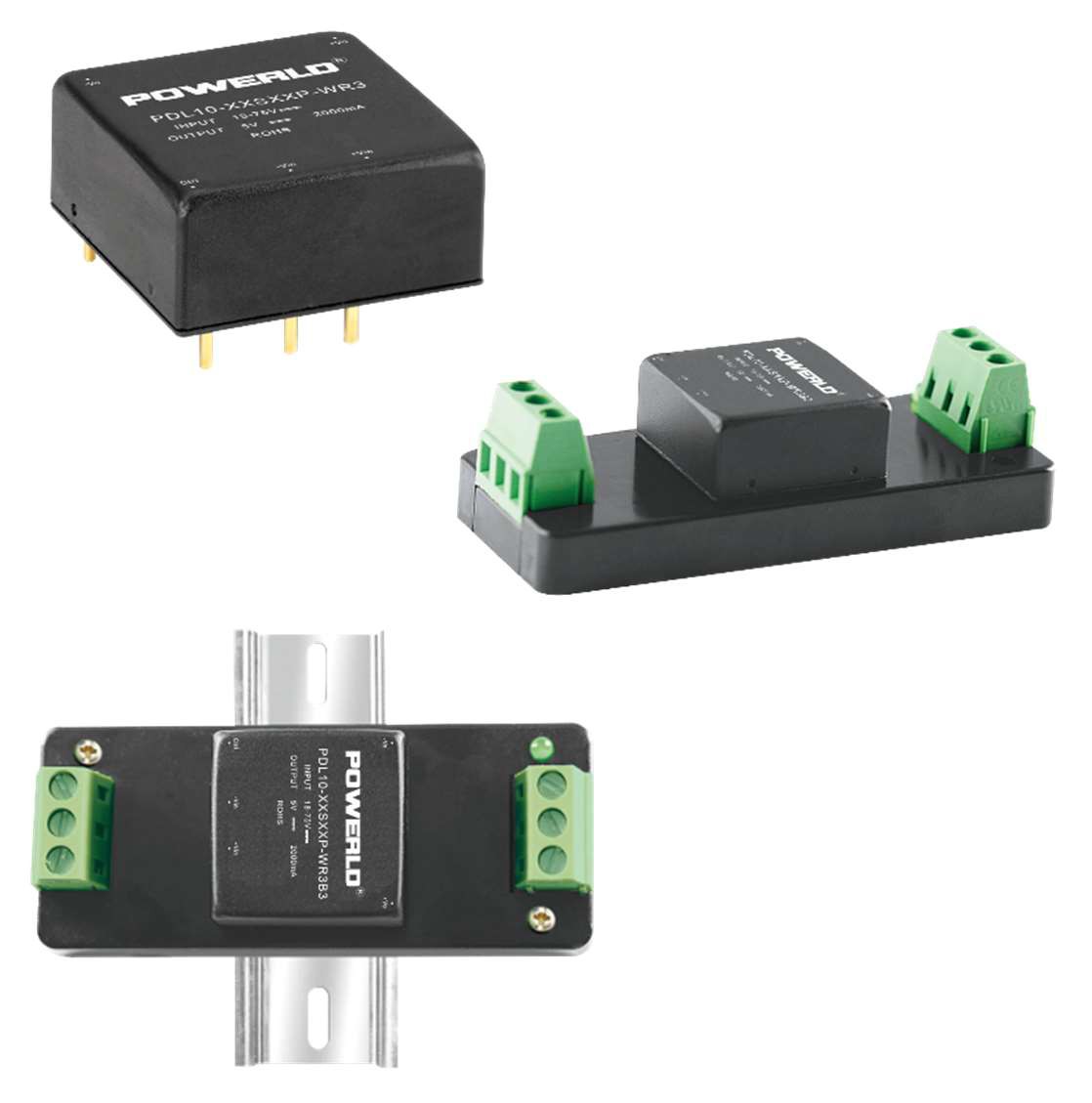

PDL10-XXSXXP-WR3 |
10W |
,9~36VDC,18~75VDC, |
3.3V ,5V ,12V ,15V ,24V |
1 |
89% |
|
25.40*25.40*11.70mm |
|
|
|
 |

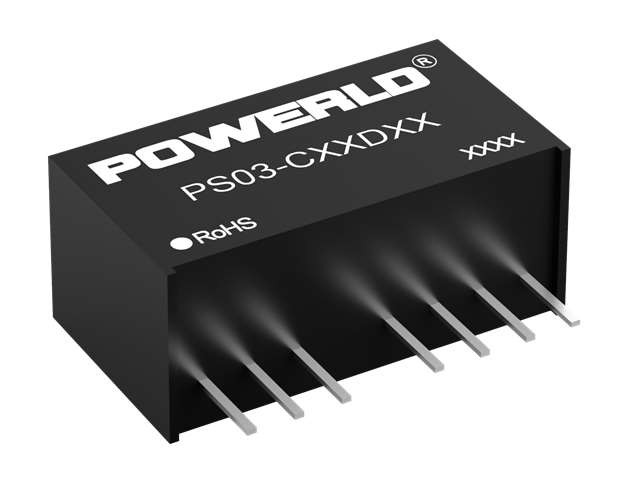

PS03-CXXDXX |
3W |
,4.5~9VDC,9~18VDC,18~36VDC,36~75VDC, |
±5V ,±12V ,±15V ,±24V |
2 |
81% |
|
22.00*9.50*12.00mm |
|
|
|
 |

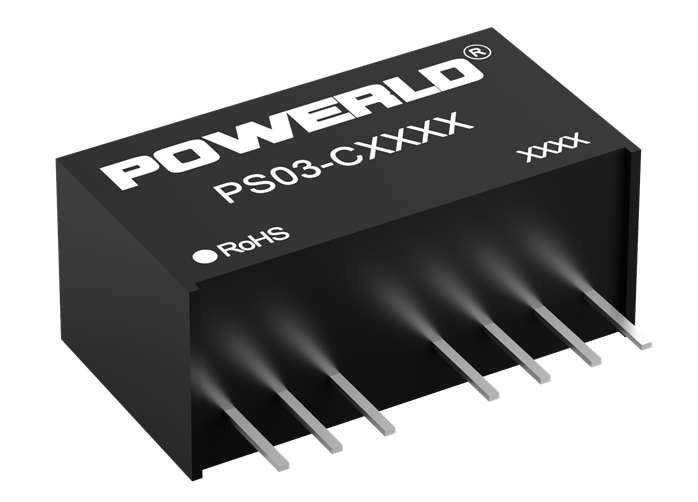

PS03-CXXXX |
3W |
,4.5~9VDC,9~18VDC,18~36VDC,36~75VDC, |
3.3V ,5V ,12V ,15V ,24V |
1 |
83% |
|
22.00*9.50*12.00mm |
|
|
|
 |

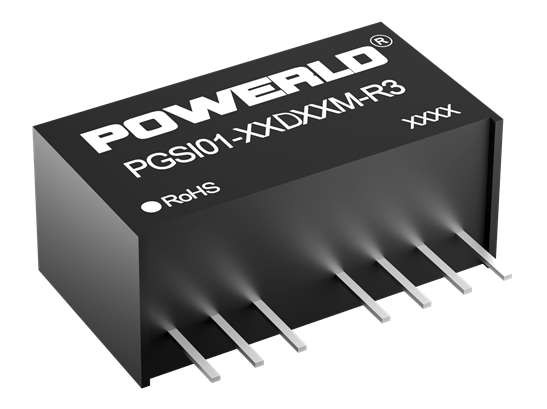

PGSI01-XXDXXM-R3 |
1W |
,4.5~9VDC,9~18VDC,18~36VDC,36~75VDC, |
±5V ,±12V ,±15V ,±9V ,±24V |
2 |
82% |
|
22.00*9.50*12.00mm |
|
|
|
 |

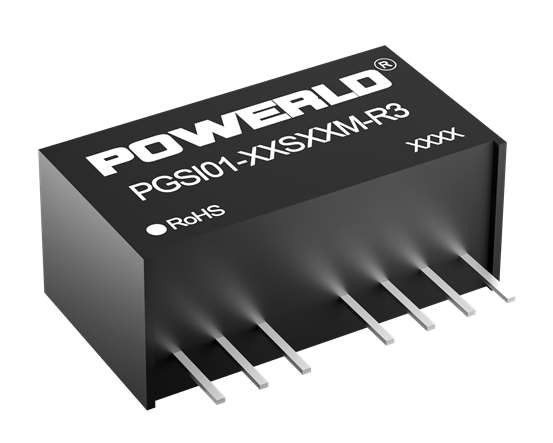

PGSI01-XXSXXM-R3 |
1W |
,4.5~9VDC,9~18VDC,18~36VDC,36~75VDC, |
3.3V ,5V ,9V ,12V ,15V ,24V |
1 |
82% |
|
22.00*9.50*12.00mm |
|
|
|
 |
PES75-48S12X-(I)R3 |
75W |
,36~75VDC, |
5V ,12V ,28V |
1 |
92% |
|
33.02*22.86*10.20mm |
|
|
|
 |
PES60-4812N-TX |
60W |
,36~75VDC, |
12V |
1 |
90% |
|
33.02*22.86*12.70mm |
|
|
|
 |
PES50-48S12X-(I)R3 |
50W |
,36~75VDC, |
3.3V ,5V ,12V ,28V |
1 |
92% |
|
33.02*22.86*10.20mm |
|
|
|
 |
PEQ400-48S48NY-H-6 |
400W |
,36~75VDC, |
48V |
1 |
91% |
|
57.91×36.81×25.60mm |
|
|
|
 |
PEQ400-48S48NY-I-6 |
400W |
,36~75VDC, |
48V |
1 |
91% |
|
57.91×36.81×13.70mm |
|
|
|
 |
PEE240-48S12NY-H-6 |
240W |
,36~75VDC, |
12V |
1 |
94.50% |
|
57.94×22.81×22.00mm |
|
|
|
 |
PEE240-48S12NY-I-6 |
240W |
,36~75VDC, |
12V |
1 |
94.50% |
|
57.94×22.81×13.50mm |
|
|
|
 |
PEE240-48S12NY-6 |
240W |
,36~75VDC, |
12V |
1 |
94.50% |
|
57.94×22.81×10.90mm |
|
|
|
 |
PEE150-48SXXNY-I-6系列 |
150W |
,36~75VDC, |
1V ,3.3V ,5V |
1 |
91.50% |
|
57.94×22.81×12.70mm |
|
|
|
 |
PEE150-48SXXNY-6系列 |
150W |
,36~75VDC, |
1V ,3.3V ,5V |
1 |
91.50% |
|
57.94×22.81×9.80mm |
|
|
|
 |
PEE100-48SXXNY-I-6系列 |
100W |
,36~75VDC, |
3.3V ,12V |
1 |
91% |
|
57.94×22.81×12.70mm |
|
|
|
 |
PEE100-48SXXNY-6系列 |
100W |
,36~75VDC, |
3.3V ,12V |
1 |
91% |
|
57.94×22.81×9.80mm |
|
|
|
 |
PEE75-48SXXNY-I-6系列 |
75W |
,36~75VDC, |
5V ,12V ,48V ,14V |
1 |
92% |
|
57.94×22.81×12.70mm |
|
|
|
 |
PEE75-48SXXNY-6系列 |
75W |
,36~75VDC, |
5V ,12V ,48V ,14V |
1 |
92% |
|
57.94×22.81×9.80mm |
|
|
|
 |
PEE50-48SxxNY-I-6系列 |
50W |
,36~75VDC, |
12V |
1 |
91% |
|
57.94×22.81×12.70mm |
|
|
|
 |
PEE50-48SxxNY-6系列 |
50W |
,36~75VDC, |
12V |
1 |
91% |
|
57.94×22.81×9.80mm |
|
|
|
